Brand: Tenda
Model: Tenda F3
Antenna: 3*5dBi external antennas

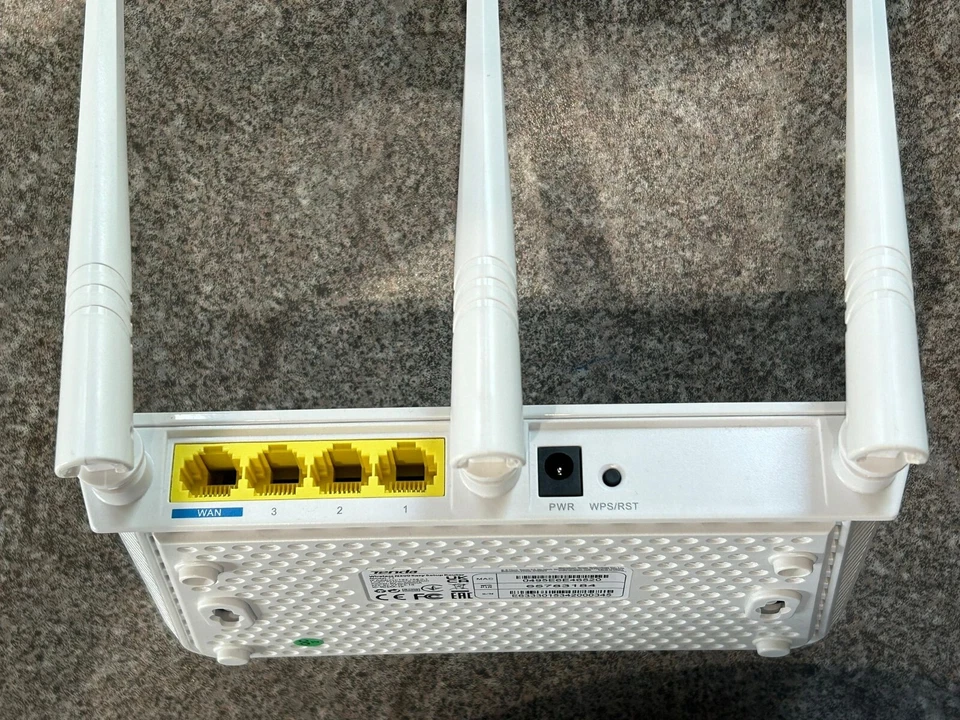

Interface: 1x WAN & 3x LAN Ports
Dimension: 185.6*118.4*31.2mm
Frequency: 2.4GHz
LED Indicator: SYS*1
Power: Input：AC 100-240V~50/60Hz 0.6A Output: DC 9V0.6A
Hardware
Standard Protocol IEEE802.3, IEEE802.3u,IEEE802.3ab
Interfaces 1*10/100Mbps WAN port
3*10/100Mbps LAN ports
Antenna 3*5dBi external antennas
Button 1*RST
Power Input： AC 100-240V~50/60Hz 0.6A
Output： DC 9V0.6A
Dimension 185.6*118.4*31.2mm
LED Indicator SYS*1
Wireless
Wireless Standard IEEE 802.11b/g/n 2.4GHz
Data Rate 2.4GHz: Up to 300Mbps
Frequency 2.4GHz
Transmission Power CE:<20dBm
Basic Features WiFi On/Off
Wireless Security WPA/WPA2, WPA-PSK/WPA2-PSK
Software
Internet Connection Type PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Operating Mode Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode
DHCP Server DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server Port Forwarding
DMZ Host
UPnP
Security Client Filter
Parental Control(support black list and white list)
Remote Web Management
Firewall Forbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP attack
Forbid WAN PING from the internet
DDNS no-ip, DynDNS, Oray
VPN IPsec pass-through
PPTP pass-through
L2TP pass-through
Special Features Smart WiFi Schedule
Others Bandwidth Control
MAC Clone
System Log
Backup and restore configurations
Firmware upgradeable via browser
IPv6 Features Supported（just in Bangladesh）
Others
Temperature Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.
Humidity Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
Default Settings Default Access: 192.168.0.1
Certification CE/FCC/RoHS
EIRP Power (Max) 2.400-2.4835GHz:19.37dBm (EIRP)

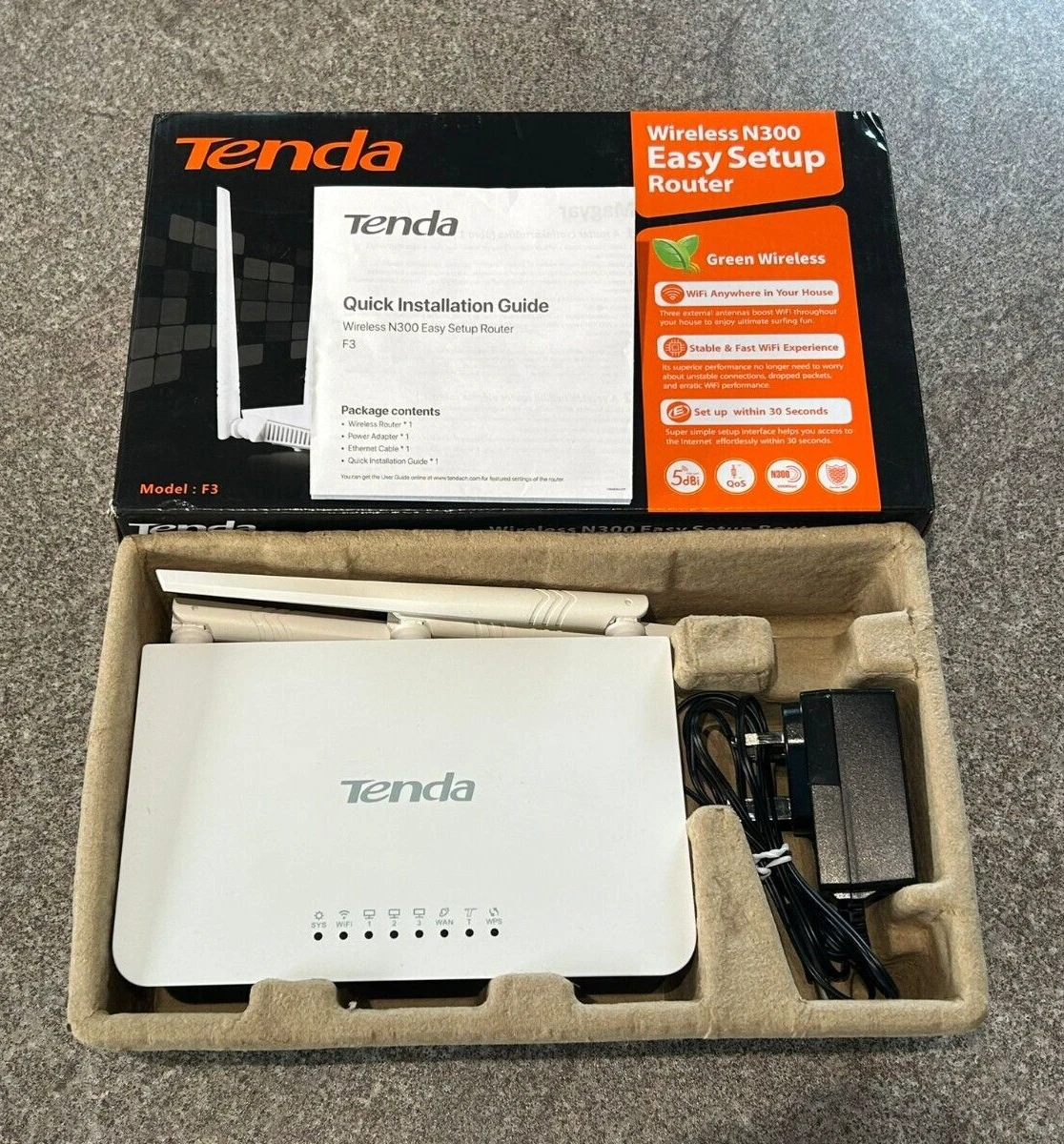

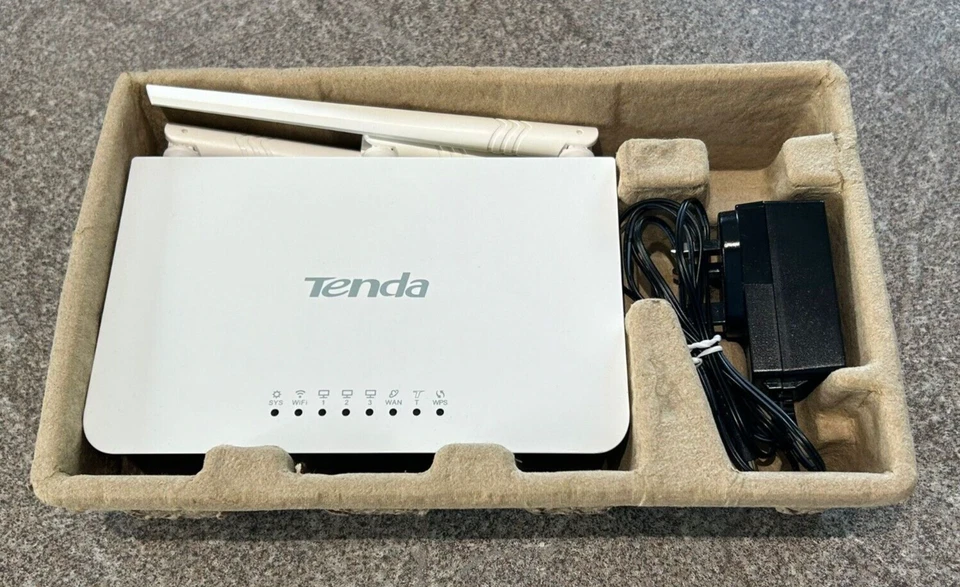

Package Contents Wireless Router*1
Power Adapter *1
Install Guide*1
Ethernet Cable*1
